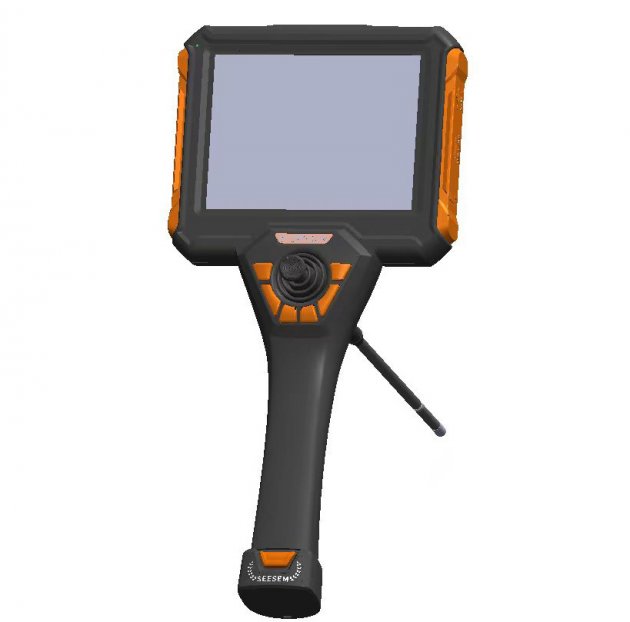

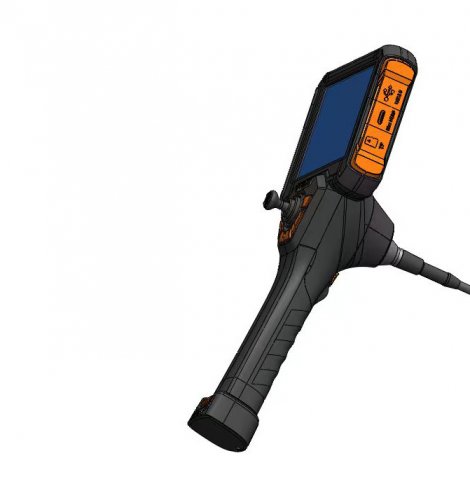

SH Series High Temp. Resistant Borescope
Description：
- UP to 1080P industrial HD camera
- 0.9mm-8.3mm diameter interchangeable probe
- 500mAh rechargeable lithium battery, up to 8 hours working time
- The probe can be continuously articulation in 360°
- Run at 1200℃ for 3 minutes
- Up to 20 minutes at 800℃
- Run for 4 hours at 500℃
- Continuous operation at 300℃
-
Features
SH Series High Temp. Resistant Borescope
5000mAh rechargeable lithium battery.
UP to 1080P
articulation in 360°
Fuzzy measurement.
32GB memory.
The image can be rotated rapidly at 0°,90°,180°,270°
High temperature environment inspection
Air/water cooling systems
Optionallens cooling method
High temperature continuous exposure time
Internal body inspection
High temperature environment inspection
Actual photos taken in high temperature environment
"
7" screen for Optional
handbag packaging
-
Series SH5-80 SH5-120 SH5-200 SH5-280 Probe Diameter 8.0mm 12mm 20mm 28mm Viewing Direction 0° Front View (Side/Dual View for option) Camera Pixels 1280*720 ( 1920*1080 for option ) D.O.F 1-10 / 5-50 / 7-150 mm F.O.V 120° Screen 5.1"_1280*960 ( 7"_1920*1200 for option ) Articulation 360° Articulation Light Source Front LED / Rear Optic fiber Illuminance front LED≥18000Lux, rear fiber transmission 20000LUX-100000lux Probe Material Tungsten-braided Stainless steel Probe Length 1.5m / 3m 1.5m / 3m 1.5m 1.5m Bending Angle ≥160°+10° within 5 meters, ≤120°+10° above 5 meters Image Resolution 1280*720 / 1920*1080 (JPG) Video Resolution 1280*720 / 1920*1080 (MP4) Waterproof Probe : IP67 Air compressor specifications This product must be used with an air compressor (air compressor is not sold). The recommended air compressor specifications are as follows:
pressure 0.6-0.8MPa, flow rate is > 120L/minLanguage Simplified Chinese, Traditional Chinese, English, Japanese, Korean, German, Portuguese, Spanish, Russian, Italian,
Dutch and other more than ten languagesSoftware Function 4 times zoom in real time, and the picture can be enlarged 8 times when looking back, image flipping Structure Handheld, integrated design Data Port 32GB TF card Storage Temperature -40℃~60℃ Working Temperature -25℃~60℃ Battery capacity 1pcs 21700 rechargeable lithium battery ≥6 hours Power supply 1pcs 21700 rechargeable lithium battery (replaceable) Standard Accessory high-ned instrument box, endoscope host, high-temperature-resistant probe pipeline, cooling parts kits.
But set of accessories connector, PU trachea, rechargeable lithium battery, card reader, 32GTF memory card data cable,
one instruction manual, on one warranty card, HDMI cable, stand, charger.Videoscope Siez 318mm*142mm*50mm Package Siez & Weight 415mm*340mm*144mm / 0.6Kg (including battery) -
SH 5.1" 360˚ Series (Interchangeable Display & Probe)
Series Tip Dia. Length Probe Material Camera Res. Temperature resistant SH5-85014-20 Ø8.5mm 1.5M Tungsten-braided
1280*720200°C SH5-85034-20 Ø8.5mm 3M Tungsten-braided 200°C SH5-85014-35 Ø8.5mm 1.5M Tungsten-braided 350°C SH5-85034-35 Ø8.5mm 3M Tungsten-braided 350°C SH5-12014-50 Ø12mm 1.5M Stainless Steel 500°C SH5-12034-50 Ø12mm 3M Stainless Steel 500°C SH5-2001-80 Ø20mm 1.5M Stainless Steel 800°C SH5-2001-100 Ø20mm 1.5M Stainless Steel 1000°C SH5-2001-120 Ø20mm 1.5M Stainless Steel 1200°C
-
Introduction
Features
SH Series High Temp. Resistant Borescope
5000mAh rechargeable lithium battery.
UP to 1080P
articulation in 360°
Fuzzy measurement.
32GB memory.
The image can be rotated rapidly at 0°,90°,180°,270°
High temperature environment inspection
Air/water cooling systems
Optionallens cooling method
High temperature continuous exposure time
Internal body inspectionHigh temperature environment inspection
Actual photos taken in high temperature environment
"
7" screen for Optional
handbag packaging -
Specification
Series SH5-80 SH5-120 SH5-200 SH5-280 Probe Diameter 8.0mm 12mm 20mm 28mm Viewing Direction 0° Front View (Side/Dual View for option) Camera Pixels 1280*720 ( 1920*1080 for option ) D.O.F 1-10 / 5-50 / 7-150 mm F.O.V 120° Screen 5.1"_1280*960 ( 7"_1920*1200 for option ) Articulation 360° Articulation Light Source Front LED / Rear Optic fiber Illuminance front LED≥18000Lux, rear fiber transmission 20000LUX-100000lux Probe Material Tungsten-braided Stainless steel Probe Length 1.5m / 3m 1.5m / 3m 1.5m 1.5m Bending Angle ≥160°+10° within 5 meters, ≤120°+10° above 5 meters Image Resolution 1280*720 / 1920*1080 (JPG) Video Resolution 1280*720 / 1920*1080 (MP4) Waterproof Probe : IP67 Air compressor specifications This product must be used with an air compressor (air compressor is not sold). The recommended air compressor specifications are as follows:
pressure 0.6-0.8MPa, flow rate is > 120L/minLanguage Simplified Chinese, Traditional Chinese, English, Japanese, Korean, German, Portuguese, Spanish, Russian, Italian,
Dutch and other more than ten languagesSoftware Function 4 times zoom in real time, and the picture can be enlarged 8 times when looking back, image flipping Structure Handheld, integrated design Data Port 32GB TF card Storage Temperature -40℃~60℃ Working Temperature -25℃~60℃ Battery capacity 1pcs 21700 rechargeable lithium battery ≥6 hours Power supply 1pcs 21700 rechargeable lithium battery (replaceable) Standard Accessory high-ned instrument box, endoscope host, high-temperature-resistant probe pipeline, cooling parts kits.
But set of accessories connector, PU trachea, rechargeable lithium battery, card reader, 32GTF memory card data cable,
one instruction manual, on one warranty card, HDMI cable, stand, charger.Videoscope Siez 318mm*142mm*50mm Package Siez & Weight 415mm*340mm*144mm / 0.6Kg (including battery) -
Model
SH 5.1" 360˚ Series (Interchangeable Display & Probe)
Series Tip Dia. Length Probe Material Camera Res. Temperature resistant SH5-85014-20 Ø8.5mm 1.5M Tungsten-braided
1280*720200°C SH5-85034-20 Ø8.5mm 3M Tungsten-braided 200°C SH5-85014-35 Ø8.5mm 1.5M Tungsten-braided 350°C SH5-85034-35 Ø8.5mm 3M Tungsten-braided 350°C SH5-12014-50 Ø12mm 1.5M Stainless Steel 500°C SH5-12034-50 Ø12mm 3M Stainless Steel 500°C SH5-2001-80 Ø20mm 1.5M Stainless Steel 800°C SH5-2001-100 Ø20mm 1.5M Stainless Steel 1000°C SH5-2001-120 Ø20mm 1.5M Stainless Steel 1200°C
